Power Semiconductors

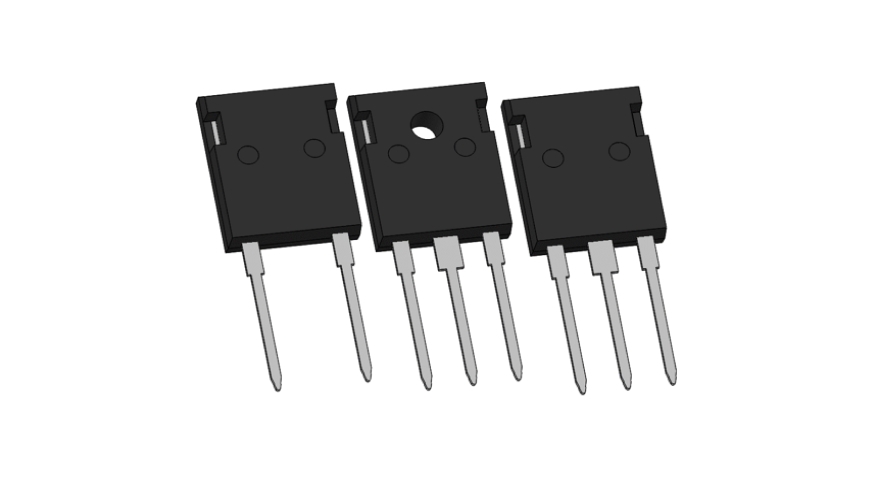

TO247 STD | TO247 TMAX

TO247 STD | TO247 TMAX
Lead Count2L3L
Pad Size12.5 x 7.42 mm12.5 x 7.42 mm; 12.17 x 8.18 mm, 12.167 x 16.13 mm (TMAX)
Leadframe MaterialPMC90 1/2H, KFC 1/2H, TAMAC-4 1/2HPMC90 1/2H, KFC 1/2H
Die AttachSoft solder, Ag sinteredSoft solder, Ag sintered
Wirebond5 - 20 mils Al5 - 20 mils Al
Body Size15.90 x 20.995 x 5.029 mm15.90 x 20.995 x 5.029 mm
Mold CompoundGR15F-A (Green), MG15F-35A, MG15F-0140GR15F-A (Green), MG15F-35A, MG15F-0140
MarkingLaserLaser
Lead Finish100Sn, SAC dip100Sn, SAC dip
PackagingTube/BulkTube/Bulk
