Power Semiconductors

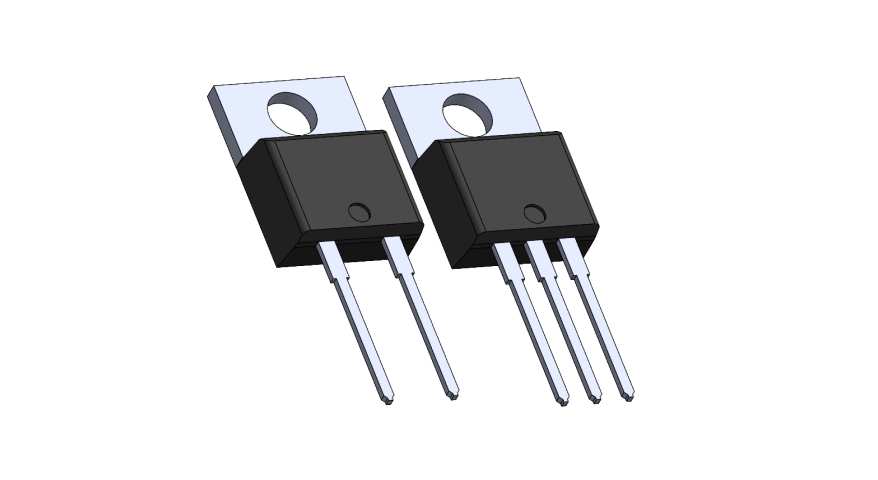

TO220

TO220
Lead Count2L2L (ISO)3L
Pad Size6.5 x 5.08 mm6.27 x 4.83 mm6.78 x 4.95 mm;
6.96 x 5.51 mm
Leadframe MaterialPMC90 1/2H, TAMAC2 FHPMC90 1/2H, TAMAC2 FHPMC90 1/2H, TAMAC2 FH
Die AttachSoft solder, Ag sinteredSoft solderSoft solder, Ag sintered
Wirebond5 - 20 mils Al5 - 20 mils Al5 - 20 mils Al
Body Size10.18 x 8.82 x 4.45 mm10.18 x 8.70 x 4.45 mm10.19 x 8.64 x 4.45 mm
Mold CompoundGR360 (Green), MG15F-35AGR360 (Green), MG15F-35AGR360 (Green), MG15F-35A
MarkingLaserLaserLaser
Lead Finish100Sn100Sn100Sn
PackagingTube/BulkTube/BulkTube/Bulk
